VS Code

The ucLog extension shows the web app's logger in a VS Code panel, with the workspace around it: logdata from your builds, a click from a log to the line that wrote it, firmware images from the workspace. It brings its own uclog-hub for the USB and Bluetooth side.

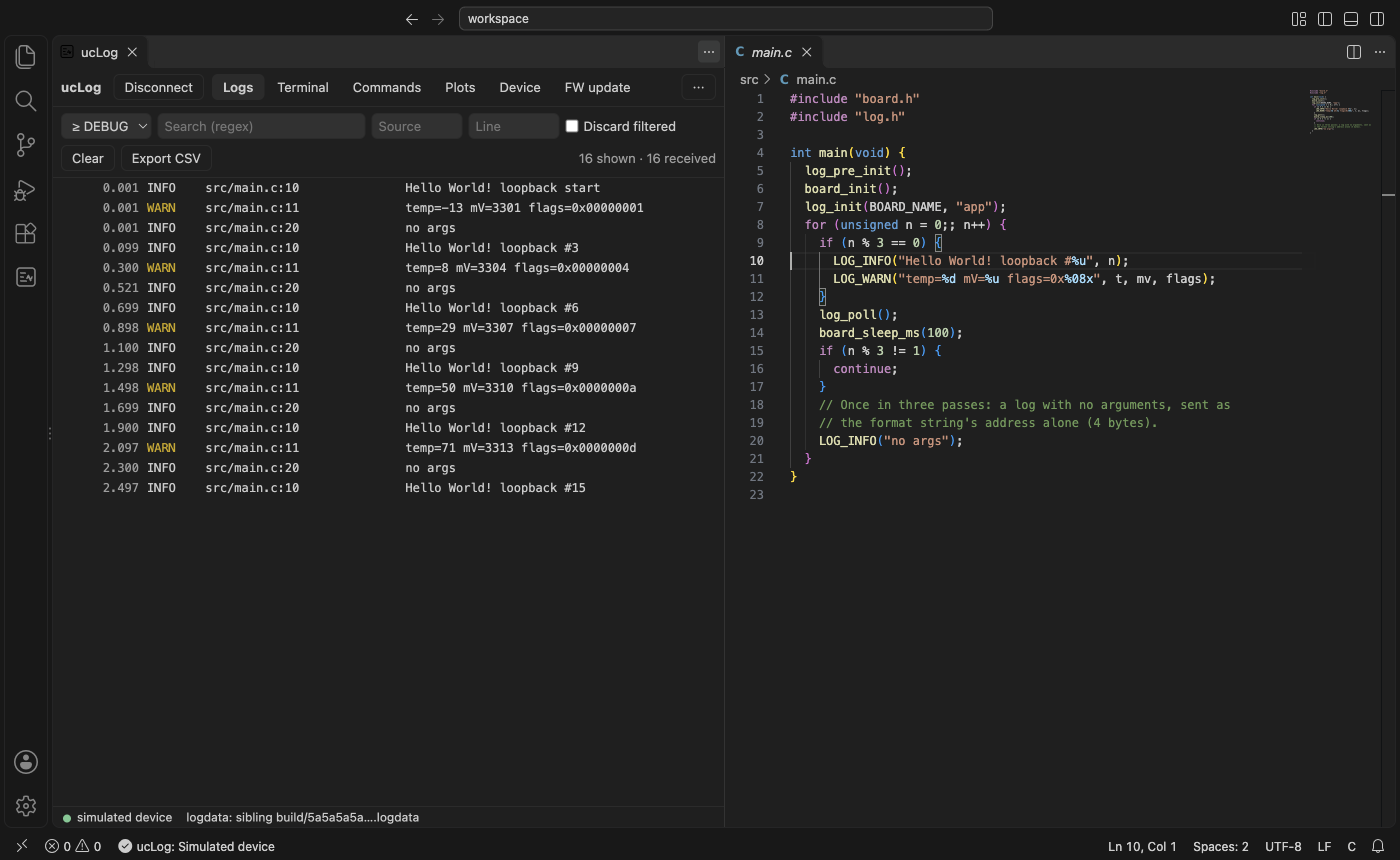

ucLog in VS Code

Connecting

ucLog: Connect… (or the ucLog view in the activity bar) lists:

  • USB devices: ST-LINK, FTDI and Zephyr serial ports, and Zephyr HID devices;
  • hubs on this machine and on the network (mDNS), and the ones you used recently;
  • Scan for Bluetooth devices…, Enter hub address…, and the simulated device.

A local device is opened by a private hub on 127.0.0.1, started for it. With uclog.keepHubRunning (on by default) it keeps running after you disconnect, so the device's logs keep buffering and appear when you reconnect. Connecting to another device stops it; all private hubs stop when the window closes.

A remote hub is reached by address. Its operator may have to accept you first (waiting for hub approval), and a hub with a client already says hub busy. The status bar shows the device and its state.

The logger

  • Logs, Terminal (port 61), Commands (port 0), Plots (port 60), Device and FW update, as in the web app.
  • Click a log's file:line to open that line in the workspace.
  • ucLog: Open Device Terminal shows the terminal in a VS Code terminal as well (uclog.terminal.mode: pseudoterminal opens it on connect).
  • ucLog: Flash Firmware… offers the workspace's *.signed.bin files, newest first.

Logdata

In this order (Logdata):

  1. files loaded with ucLog: Load Logdata… (an ELF or a .logdata file);
  2. the logdata cache shared with the other ucLog tools and filled by the device builds;
  3. the logdata service, when uclog.logdata.domain is set (the token: ucLog: Set Logdata Token, kept in VS Code's secret storage);
  4. the workspace: a <app_hash>.logdata file, or the ELF next to a *.signed.bin whose hash matches.

ucLog: Clear Logdata Cache empties the shared cache, after asking.

Files on the host (semihost)

The device may open and create files in uclog.semihost.root: by default uclog-files in the first workspace folder, so a device cannot write to .git/ or .vscode/. Paths that leave the folder are refused. The device's printf() output appears in the terminal.

Settings

Setting
uclog.logdata.domain, uclog.logdata.url the logdata service
uclog.semihost.root the semihost folder
uclog.keepHubRunning keep private hubs after disconnecting (default on)
uclog.baud the serial speed (1000000)
uclog.usbFilters more USB serial adapters, as VID:PID
uclog.hubPath a uclog-hub to use instead of the bundled one
uclog.maxLogLines logs kept
uclog.commands.buttons, uclog.terminal.buttons buttons ({"label", "cmd"})
uclog.terminal.onConnect lines sent to the terminal after connecting
uclog.terminal.mode webview or pseudoterminal

ucLog: Reset All Data clears what the extension remembers (history, colours, recent hubs) and its token. The shared logdata cache is kept.

Remote development

With Remote-SSH, WSL or a container, the extension runs on your own machine when it is installed there (its preferred side), so the USB and Bluetooth devices it lists are the ones plugged into your machine. A device attached to the remote machine is reached through a hub there: run uclog hub -d auto on it, and connect to its address.
